MultiView HD Picture in Picture Video Processor

Datatoys Multiview HD Picture in Picture Video Processor connects up to four Datatoys HD bullet cameras to produce a completely customizable “picture perfect” video stream, which in turn is recorded using the Datatoys AirKnight HD high definition video recorder or is viewed on a high definition HD monitor.

Datatoys MultiView HD Picture in Picture Video Processor Specifications:

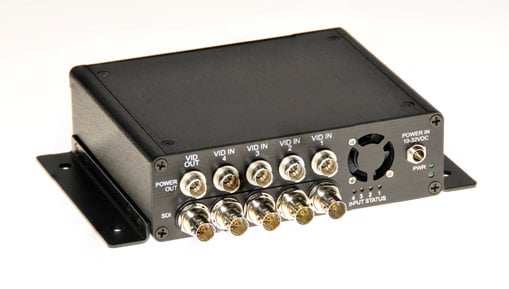

  • Video-In Resolution: 4 x High Definition 1080p30 or 1080p60
  • Video-In Format: 4 x SDI, HD-SDI, or 3G-SDI
  • Video-Out Resolution: 1 x High Definition 1080p30 or 1080p60
  • Video-Out Format: 1 x SDI, HD-SDI, or 3G-SDI
  • Video Out: Completely Customizable by end user using a standard PC
  • 10-32VDC Wide Power Range
  • 1 x Ethernet 100BaseT

The Multi-View HD allows you to create multiple camera views on a single screen for recording or viewing on a monitor.  Designed for advanced flight training, the Multi-View HD can input multiple HD cameras, showing the pilot, instructor, gauges, and a tail view from the aircraft all on a single screen, making debriefing more efficient and productive.

Custom Views

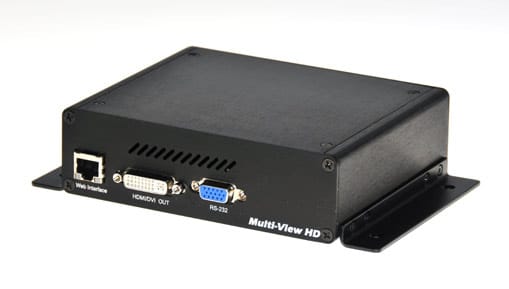

The intuitive web user interface lets you select position, size, and scale all four inputs into a single output, or choose one of our default templates.  The web user interface works on any PC using an Ethernet cable.

Logo Overlay

Optional logo overlay lets you upload your own custom logo onto the video to be outputted in real time.  Get professional looking video without having to use editing software.

*note: the logo must be placed in areas where no video is present to be visible

Rugged Design

An anodized aluminum enclosure features sturdy mounting plates for use in Aircraft, or Military vehicles.  A wide power input range means it works in both 14V and 28V aircraft.

Multiple Inputs

A wide input range allows you to connect different cameras, even with different frame rates and resolutions.  Great for multi-sensor gimbal systems.

Plug-and-Play Systems Available

The Multi-View HD can be paired with our AirKnight-HD recorder, and HD Mini Bullet cameras as a complete plug-and-play system.
