HD Mini Bullet Camera – 23mm x 77mm

The Datatoys HD high definition Mini Bullet Camera features the full HD-SDI 1080p30 resolution while being rugged, durable and compact.

  • Full 1080p30 through HD-SDI.
  • Fully Adjustable Settings.
  • Easy to Mount.
  • Lens Options – 2.9 (please call), 3.7, 8.0, 16 mm

bw-cam-hdmini_side_lrgThe HD Mini offers full 1080p resolution while being small and rugged enough for military applications.  An HD-SDI output can be connected to any HD-SDI recorder or monitor including the Datatoys AirKnight product line. A wide angle lens if optimized for mobile applications providing a wide view without large amounts of distortion or fish eye effect.

Lens Options:

  • 2.9 (please call), 3.7, 8.0, 16 mm

You can select the lens option under “Customize” before adding the camera to your cart.


  • Full 1080p Resolution.
  • HD-SDI & Analog Output.
  • Compact and Rugged.

A 1/3″ Panasonic sensor offers 2.1 megapixels of resolution along with excellent light performance, noise and vibration reduction. Settings have been specifically optimized to provide ultimate performance in aviation applications.

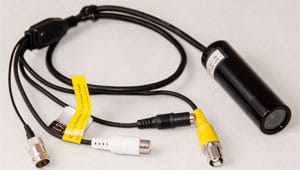

Video is output through a BNC connector (HD-SDI) or the Hirose LF series connector
bw-cam-cord_size_lrgwhich contains NTSC/PAL and power input pins. An adjustment toggle on the cable allows you to access the on screen menu for easy setting changes.

Mounting is easy with two 1/4-20 threaded mounting boss on the back of the camera, or use the included click mount. Included is our clamp mount, great for mounting to a bar, and our suction mount, ideal for surface mounting.

spudUse the optional Spud Mount to securely mount the HD Mini-Bullet to nearly any surface.
