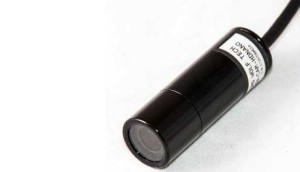

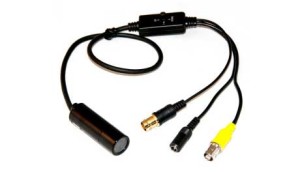

HD Mini Bullet Camera – 19 mm x 56 mm @ 82 gr (BW-CAM-HDNANO)

HD Mini Bullet Camera from Bad Wolf Technologies is the smallest HD-SDI rugged bullet camera on the market. This highly rated rugged HD Mini Bullet Camera thrives in harsh environments ranging from naval, aviation, tactical, security, surveillance, CCTV to broadcast and Motorsports applications. Or anything else life throws at it. It outputs video signal in both HD (high definition) and SD (standard definition) PAL or NTSC at the same time (user-selectable).  This Bad Wolf Technologies HD Mini rugged Bullet Camera is a true power house, full of features in a miniaturized package smaller than the size of a lipstick case.  It is an incredible value and is full of features, such as full high definition 1080p resolution and DSP digital signal processing, while being super compact and highly durable. And best of all, it is very affordable.

Here are just a few highlights. For more details, please contact sales for the datasheet.

  • 2.1 Megapixel, 1/3″ Panasonic Exmor Color CMOS sensor, one of the best in the industry.
  • DSP Digital Signal Processing yields numerous image processing capabilities and enhancements.
  • Full High Definition 1080p60 3G-SDI or 1080p30 HD-SDI bullet camera.
  • Supports 3G-SDI, HD-SDI, EX-SDI, SDI, CVBS
  • Water Proof to IP67.
  • Lens options: 2.9 (please call), 3.7, 6.0, 8.0, 12, 16 mm.
  • Rugged and built to withstand harsh environments.
  • Works in fixed wing and rotor craft.
  • Makes an excellent cockpit, cargo hold, instrumentation, hoist, landing gear or rotor monitoring camera.
  • Great for flight schools, firefighting, first responders, air ambulance, air lift, and much more.
  • Hirose locking miniature bayonet connectors.
  • Internal custom potting available.
  • Quick-disconnect option available.
  • CABLING Options: Industry standard, or MCR5 burn-proof milspec Tefzel all-in-one (power, video & OSD) wiring. MCR5 Aircraft Grade burn-proof Tefzel cabling combines power and video signals.
  • Various mounting options available.
  • Extremely small (19 mm x 56 mm) & and lightweight (80 gr)  (0.75″ x 2.2″ @ 2.2 oz).
  • Full two (2) Year warranty.
  • TO ORDER, USE PART NUMBER: BW-CAM-HDNANO
    123
    Datasheet
    Request More Information

    19mm HDSDI Bullet Camera The HD Nano offers full 1080p60 and 1080p30  resolution while being the smallest 3G-SDI and HD-SDI bullet style camera available on the market. The HD Nano is designed to be compact and rugged enough for many applications.  An HD-SDI output can be connected to any HD-SDI recorder or monitor including the Datatoys AirKnight HD or the Red Hawk HD products. A wide angle lens if optimized for mobile applications providing a wide view without large amounts of distortion or fish eye effect.

    Lens Options:

    • 2.9 (please call), 3.7, 6.0, 8.0, 12, 16 mm

    Features

    • Full 1080p Resolution.
    • Resolution and Frame Rate 1080p60, 1080p30, 1080p25, 720p50, 720p60
    • HD-SDI & Analog Output.
    • Compact and Rugged.

    A 1/3″ Panasonic 2.2M Progressive Scan CMOS sensor offers 1956(H) x 1266(V) of resolution along with excellent light performance, noise and vibration reduction. Settings have been specifically optimized to provide ultimate performance in aviation applications.

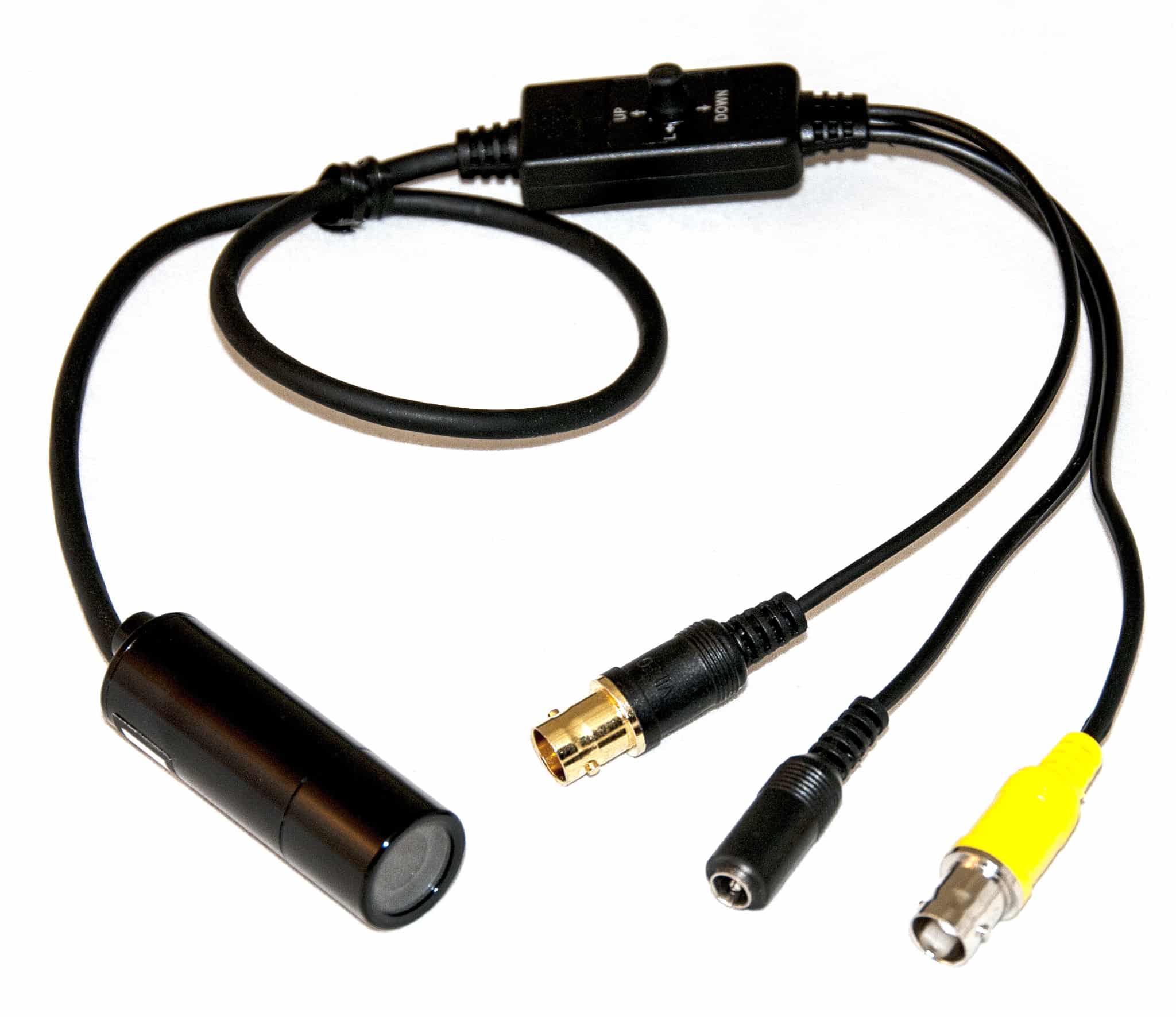

    Video is output through a BNC connector (HD-SDI) or the Hirose LF series connector

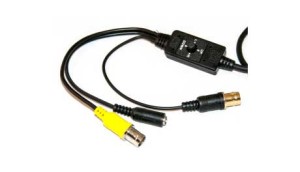

    which contains NTSC/PAL and power input pins. An adjustment toggle on the cable allows you to access the on screen menu for easy setting changes.

    Mounting is easy with a 1/4-20 threaded mounting boss on the back of the camera, or use the included click mount. Included is our universal mount, great for any mounting surface. Upgrade to our Aluminum Pro Mount for secure external camera mounting. Optional mounts include our Super Clamp mount for bar mounting applications and our Suction Cup mount, ideal for surface mounting.
