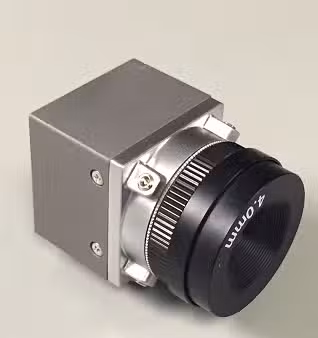

HD Mini Cube Camera – 29mm x 29mm
The HD Mini Cube Camera features 1080p60 3G-SDI and 108p30 HD-SDI full high definition resolution
- Full HD high definition 1080p60 3G-SDI and 1080p30 HD-SDI mini cube camera
- 1/2.8” 2.38 Megapixel Sony Exmor CMOS Sensor
- Fully Adjustable Settings.
- Easy to Mount.
- CS Mount Lens of your choice
- Ask for different Lens options
The 3G HD-SDI Cube Camera offers full 1080p resolution while being the small and most rugged full HD camera in the world. With 3G-SDI 1080p60 capability, the HD Cube Camera records at higher than broadcast video resolution. An HD-SDI output can be connected to any HD-SDI recorder or 3G-SDI monitor including the Datatoys AirKnight HD product line. Choose between a wide range of C/CS mount lenses to customize your FOV. Use a wide angle lens if optimized for mobile applications providing a wide view without large amounts of distortion or fish-eye effect.

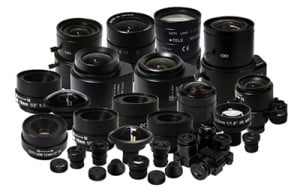

Lens Options. Any standard size Fixed or Varifocal C/CS Mount Lens will work with the Cube Camera. Please consult our knowledgeable sales staff for different lens options.
*FOV measured diagonally
- 1/2.8″ Sony Exmor CMOS Sensor
- Full HD 1080p Resolution.
- 1080/720 @ 25p/30p/50p/60p/50i/60i selectable
- WDR / DNR / AGC / Sens-Up
- Dynamic Motion Detection (8 zones, up to 1980 blocks)
- Privacy Zone Masking (8 zones)
- HD-SDI / 3G-SDI Output (NTSC / PAL)
- OSD Joystick built-in

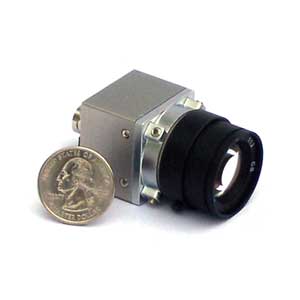

- 29(W) x 29(H) x 29(D) mm
- DC12V – 24V
A 1/2.8″ Sony Exmor sensor offers 2.38 total Megapixels of resolution along with excellent light performance, noise and vibration reduction. Settings have been specifically optimized to provide ultimate performance in aviation applications.
BNC connector, on the rear panel of the camera, provides HD-SDI video signal which goes out to the display or the recording source such as a TV, an HD-SDI or analog monitor or the AirKnight HD DVR. The HD-SDI Cube Cam is also compatible with any other HD-SDI DVR available on the market today. Bad Wolf Technologies provides a
Bad Wolf Technologies provides a wide variety of cabling options for the HD Cube Cam. One such option uses the Hirose locking bayonet connector containing POWER/GROUND pair. The benefit of using the Hirose connectors for power is twofold. First, it is a true “plug and play” connection to the AirKnight HD DVR (the HD-SDI or 3G-SDI signal will still travel via the BNC video cable). Second, it provides power to the HD-SDI Cube Camera from the DVR. Yes, the AirKnight HD will supply the power to the HD-SDI Cube Cam. The Hirose multi-pin positive lock bayonet connector take care of power while the high-end BNC connector provides a positive lock for high-quality video cables. Both of these are available right here at Bad Wolf Technologies llc.
Making a long story short, your camera video and power cables will not come loose by accident. Unless you really want them to. To top it off, our MCR ™ multi-core ™ cabling scheme allows both the high-speed SDI and DC power signals run over the same cable over extended distances with no loss of video signal whatsoever. The immediate benefit is a single cable run instead of two video (BNC) and power (DC) cables. This results in shorter installation times, smaller holes being drilled through the bulkhead or the airframe, easier to pull through tight spaces when used in drones, ROVs or smaller airframes. So, in the end, the weight savings are substantial due to the small diameter size and light weight of the MCR cable. Just goes to show you that real American engineering is still alive and well.
Mounting this amazing Micro HD Cube Cam is easy with two 1/4″-20 threaded mounting plate on the bottom of the camera. Use our Universal Mount for attaching the Cube Cam to a flat surface. Another option is to use our Super Clamp Mount for mounting the Cube Cam to a roll bar, pipe, door, desk, table, or any other surface you can think of. Furthermore, our Suction Cup Mount is ideal for mounting on a variety of flat or almost flat surfaces, such as car roof, hood, door panels, table top, desk, door, wall, motorbike, trailer, airplane, helicopter and whatever else you can think of.
With Bad Wolf Technologies you have lots of options…
